Engineered
Quartz Stone

Quartz is a naturally occurring silicate mineral composed of silicon dioxide(Sio2). It ranks 7.0 m MOH (Measurement of hardness) Scale behind topaz, sapphire and diamond 10. Quartz exists naturally in cluster and not on blocks which make it unsuitable for use in natural state and needs to be connected into another form to make it use in various application.

Engineered quartz stone is manufactured from a mix of quartz chips, powder, polyester resin binder, pigments and additives. They can be made in wide range of colour, patterns and texture. The ratio of quartz in total product mix is generally more than 90%. The quartz product bridges the gap between nature and technology by eliminating all inherent problems that are prevalent in natural products.

Advantage and Characteristics
  • Stain Resistant
  • Acid, Solvent & Scratch Resistant
  • Impact Resistant
  • Heat resistant
  • Low Maintenance
  • Wide range of size, thickness & colors
  • Hard and durable
  • Non-porous
  • Chip and mildew resistant
  • Colour consistency & flexible design.
  • Special food grade and anti-microbial formula
  • Environmental friendly
  • Less wastage during laying & lower cost of installation.
Applications
  • Kitchen table top, countertops
  • Fireplaces
  • Flooring
  • Bathtubs
  • Showers
  • Backsplashes
  • Wall cladding
  • Treads and risers
  • Door sill or threshold
  • Staircases, door jams, window sills
Sizes
  • Area: 3 x 3 mtrs, 2x 2 mtrs
  • Thickness: 15, 18, 20, 30 mm
Specifications
  • U. S. Building codes
  • H.S. Code 68101990
  • C.E. Certification conforming with health safety and environmental protection standards
  • Reaction to fire text report issued by S.G.S
  • Applicable Indian Code IS13630 Part 1-06
Technical Specifications

CharacteristicsStandardUnitQuartz Value
Water AbsorptionEN99% ≤0.02
Flexural strengthEN100mpa>40
HardnessEN101Mohs>6
DensityASTMC97Kg/m32400 to 2700
Abration resistanceEN102Mm398-160
Mm>25
Impact resistanceEN14617J5.5-7.5
Glossiness reflectionGloss meter%55-70
Thermal expansion co-officientEN103m/m°c10-30x10-6
Compressive strengthASTM C170MPa150-240
Slip resistanceDIN 51130-R9(for honed 400)
Frost resistanceDIN 52104Compliance
Deviation in thickness%±5
Surface flatness%±5
Rectangularity%±0.6

Photos

  • Kitchen Table Top, Countertops
    Kitchen Table Top, Countertops
  • Fireplaces
    Fireplaces

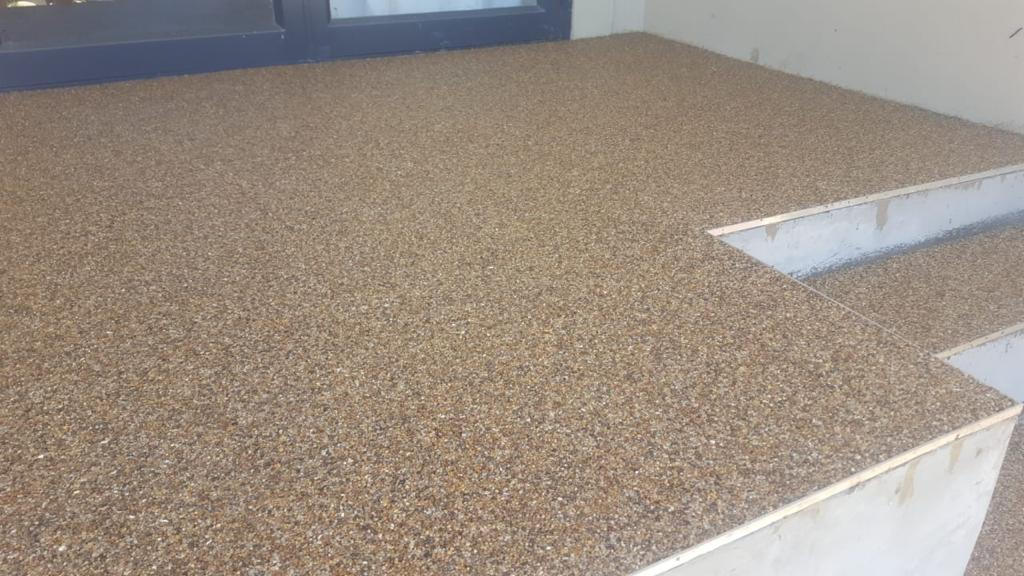

  • Flooring
    Flooring
  • Bathtubs
    Bathtubs
  • Showers
    Showers
  • Backsplashes
    Backsplashes
  • Wall Cladding
    Wall Cladding
  • Treads and Risers
    Treads and Risers

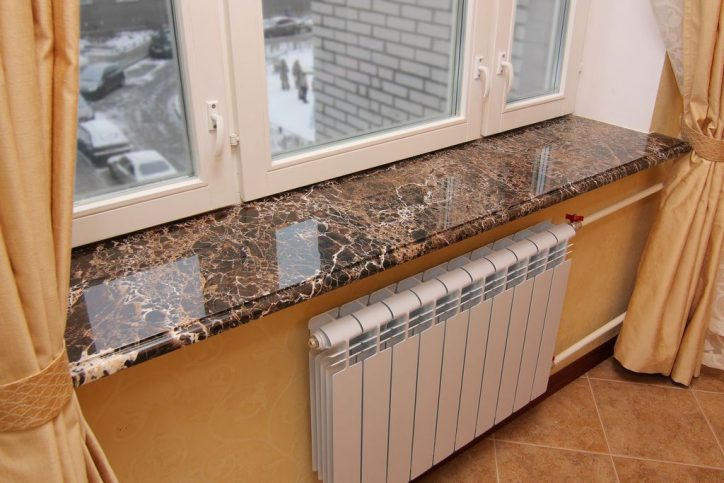

  • Staircases, Door Jams, Window Sills
    Staircases, Door Jams, Window Sills

We have made long term supply arrangements with few very reputed manufacturers in India and would be looking forward for specific requirements from your end.
