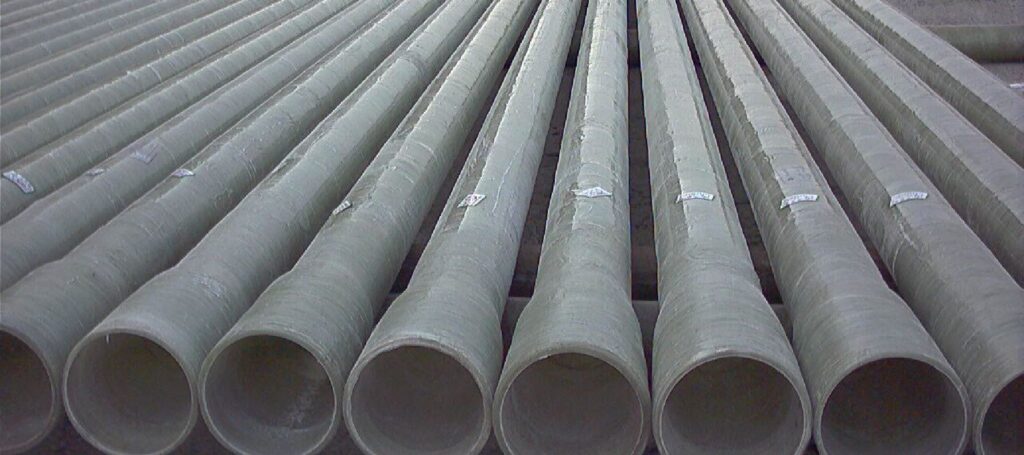

Fiber Glass Reinforced Pipe(F.R.P)
Pipes & Accessories

Fiber glass pipe is a technologically advance product than concrete pipes, coated steel and plastic pipes. Fiber glass is a light weight, non-conductive corrosion resistant there by reducing installation cost and time class 1 fire rating are achieved through addition of fire retardant resin. UV inhibitors are incorporated to provide protection & Colour stability for application involving continuous exposure to sun.

Product Range

Pipe 50mm to 3000 mm, Sheet – 1” to 2 ½ length 3” to 12” colour –orange, dark grey, green, yellow, light grey.
Sewerage water tanks Air Pollution system (Scrubber Blower, Ducting, chimney, hoods, Gratings, Hand Railings, Pallets Ladders, Platforms, Cable Trays, liner panels

Length – 12 mtrs Joints – Reka couplings / collars EPDM gaskets Pressure Class – 3,6,9,12,15 kg/cm2

Application

Water supply Cross country pipelines
Transmission lines
Sewerage network
Irrigation lines
Sea water lines
Chemical piping system
Oil piping

Specification

MIL Specs
AMS standards
ROH’s Compliance API15LR, IS14402, AWWAM45

Standard

ASTM D638, D6641, D790, D5379, D2344, D953, D256, D570, D792, D696, C-177, D495, D149, D150, D635, UL94, E84, E662

Fitting upto 24” – ASTM D5685

Properties

Density lb/ft³	107-120
Tensile Strength	2.8 LW - 1.0CW
Flexural Strength PSI	30,000 LW - 10,000 CW
Flexural Modulus x 10⁸ PSI	1.8 LW - 08.00 CW
Thermal Conductivity (BTU in/hrft³ ℃)	4
Thermal Expansion	7 to 8
